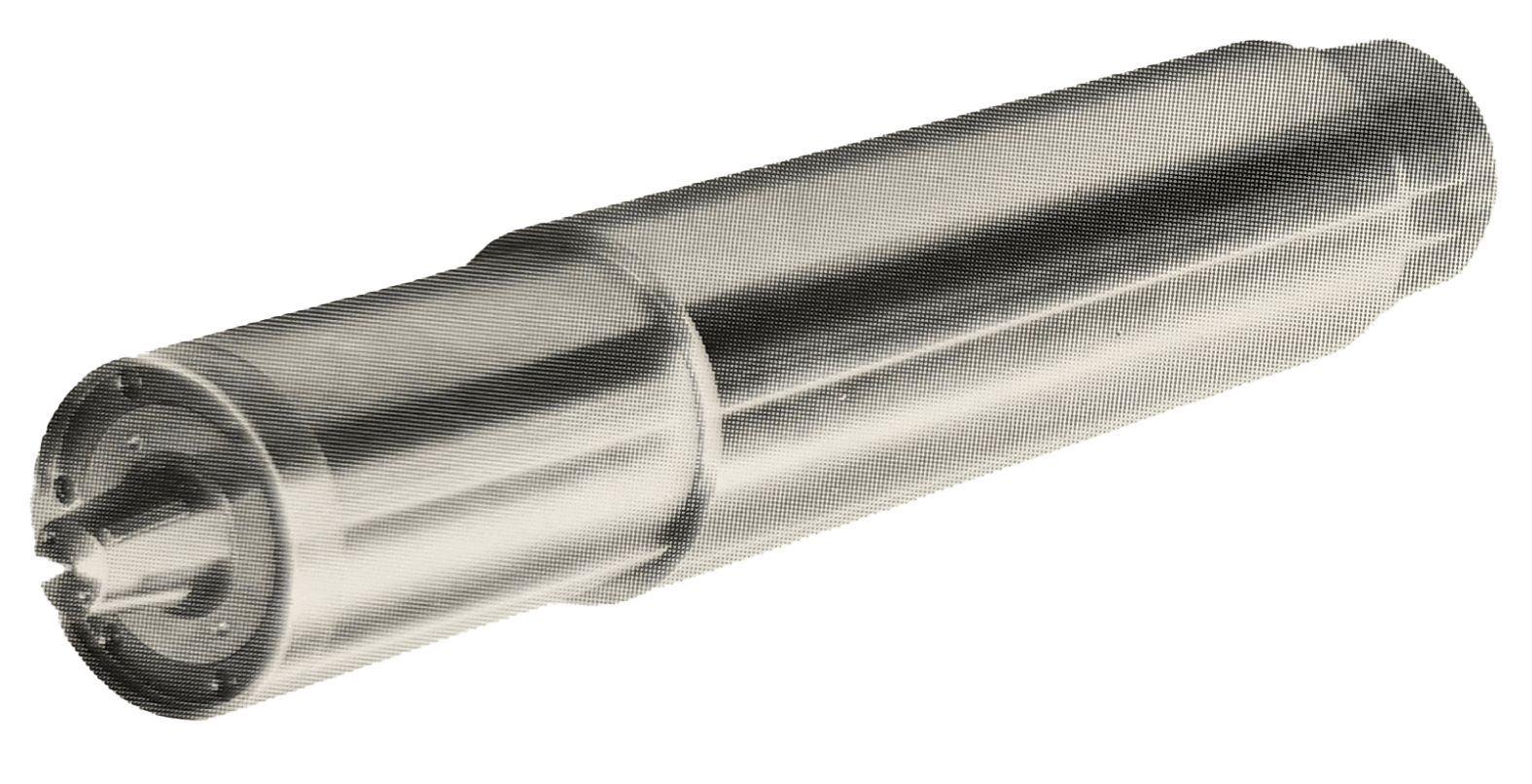

A cartridge spindle consists of a cartridge housing that holds the bearings and a spindle shaft that rotates within the cartridge. You may order a cartridge spindle without a drive which means it relies on an external source of power to rotate the spindle shaft and cutting tool.
Cartridge spindles without drives are often used in machining operations, such as drilling, milling, or grinding. Cartridge spindles without drives are a reliable and cost-effective option for many machining tasks.
REFERENCE | HOUSING SIZE (WIDTH) | TOOL TYPE | DRAWING | MAX SPEED (RPM) | FRT BRG SIZE | WHEEL I.D. (IN) | PULLEY O.D. (IN) | NOTES |
3401G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 11,000 | 17 | 0.875 | 1.75 | SPRINGFIELD #1B-TR |
3402G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 11,000 | 17 | 0.875 | 1.75 | SPRINGFIELD #1B-TR |
3403G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 9,600 | 17 | 0.875 | 2 | SPRINGFIELD #1B-TR |
3404G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 9,600 | 17 | 0.875 | 2 | SPRINGFIELD #1B-TR |
3405G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 8,500 | 20 | 1.25 | 2.25 | SPRINGFIELD #1B-TR |
3406G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 8,500 | 20 | 1.25 | 2.25 | SPRINGFIELD #1B-TR |
3407G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 7,700 | 25 | 1.25 | 2.5 | SPRINGFIELD #1B-TR |
3408G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 7,700 | 25 | 1.25 | 2.5 | SPRINGFIELD #1B-TR |
3409G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 7,000 | 30 | 1.25 | 2.75 | SPRINGFIELD #1B-TR |
3410G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 7,000 | 30 | 1.25 | 2.75 | SPRINGFIELD #1B-TR |
3411G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 6,400 | 30 | 1.25 | 3 | SPRINGFIELD #1B-TR |
3412G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 6,400 | 30 | 1.25 | 3 | SPRINGFIELD #1B-TR |
3413G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 5,900 | 35 | 2.5 | 3.25 | SPRINGFIELD #1B-TR |
3414G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 5,900 | 35 | 2.5 | 3.25 | SPRINGFIELD #1B-TR |
3415G | 3.5000″ | GRINDING WHEEL | SEE CATALOG | 5,500 | 35 | 2.5 | 3.5 | SPRINGFIELD #1B-TR |
3501G | 4.5000″ | GRINDING WHEEL | U10680 | 7,700 | 25 | 1.25 | 2.5 | SPRINGFIELD #2A-TR & 3-TR |
3502G | 4.5000″ | GRINDING WHEEL | U103680 | 7,700 | 25 | 1.25 | 2.5 | SPRINGFIELD #2A-TR & 3-TR |
3503G | 4.5000″ | GRINDING WHEEL | U082920 | 6,400 | 30 | 1.25 | 3 | SPRINGFIELD #2A-TR & 3-TR |
3504G | 4.5000″ | GRINDING WHEEL | SEE CATALOG | 6,400 | 30 | 1.25 | 3 | SPRINGFIELD #2A-TR & 3-TR |
3505G | 4.5000″ | GRINDING WHEEL | U107370 | 5,100 | 35 | 2.5 | 3.5 | SPRINGFIELD #2A-TR & 3-TR |
3506G | 4.5000″ | GRINDING WHEEL | U105920 | 5,100 | 35 | 2.5 | 3.5 | SPRINGFIELD #2A-TR & 3-TR |
3507G | 4.5000″ | GRINDING WHEEL | U105630 | 4,800 | 45 | 2.5 | 3.75 | SPRINGFIELD #2A-TR & 3-TR |
3508G | 4.5000″ | GRINDING WHEEL | SEE CATALOG | 4,800 | 45 | 2.5 | 3.75 | SPRINGFIELD #2A-TR & 3-TR |
3509G | 4.5000″ | GRINDING WHEEL | SEE CATALOG | 4,800 | 45 | 2.5 | 3.75 | SPRINGFIELD #2A-TR & 3-TR |
3510G | 4.5000″ | GRINDING WHEEL | U104670 | 4,300 | 50 | 2.5 | 4.13 | SPRINGFIELD #2A-TR & 3-TR |
3511G | 4.5000″ | GRINDING WHEEL | E187760 | 4,300 | 50 | 2.5 | 4.13 | SPRINGFIELD #2A-TR & 3-TR |
3512G | 4.5000″ | GRINDING WHEEL | E109470 | 4,300 | 50 | 2.5 | 4.13 | SPRINGFIELD #2A-TR & 3-TR |
3513G | 4.5000″ | GRINDING WHEEL | E139600 | 4,300 | 50 | 2.5 | 4.13 | SPRINGFIELD #2A-TR & 3-TR |
3514G | 4.5000″ | GRINDING WHEEL | SEE CATALOG | 7,700 | 25 | 1.25 | 2.5 | SPRINGFIELD #2A-TR & 3-TR |
3601G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 7,700 | 25 | 1.25 | 2.5 | SPRINGFIELD #3-TR & 3-1/2-TR |
3602G | 5.5000″ | GRINDING WHEEL | U106860 | 7,700 | 25 | 1.25 | 2.5 | SPRINGFIELD #3-TR & 3-1/2-TR |
3603G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 6,400 | 30 | 1.25 | 3 | SPRINGFIELD #3-TR & 3-1/2-TR |
3604G | 5.5000″ | GRINDING WHEEL | U106730 | 6,400 | 30 | 1.25 | 3 | SPRINGFIELD #3-TR & 3-1/2-TR |
3605G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 5,100 | 35 | 2.5 | 3.5 | SPRINGFIELD #3-TR & 3-1/2-TR |
3606G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 5,100 | 35 | 2.5 | 3.5 | SPRINGFIELD #3-TR & 3-1/2-TR |
3607G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 4,800 | 45 | 2.5 | 3.75 | SPRINGFIELD #3-TR & 3-1/2-TR |
3608G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 4,800 | 45 | 2.5 | 3.75 | SPRINGFIELD #3-TR & 3-1/2-TR |
3609G | 5.5000″ | GRINDING WHEEL | E146970 | 4,800 | 45 | 2.5 | 3.75 | SPRINGFIELD #3-TR & 3-1/2-TR |
3610G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 4,300 | 50 | 2.5 | 4.13 | SPRINGFIELD #3-TR & 3-1/2-TR |
3611G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 4,300 | 50 | 2.5 | 4.13 | SPRINGFIELD #3-TR & 3-1/2-TR |
3612G | 5.5000″ | GRINDING WHEEL | U107680 | 4,000 | 60 | 2.5 | 4.75 | SPRINGFIELD #3-TR & 3-1/2-TR |
3613G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 4,000 | 60 | 2.5 | 4.75 | SPRINGFIELD #3-TR & 3-1/2-TR |
3614G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 3,500 | 70 | 2.5 | 5.25 | SPRINGFIELD #3-TR & 3-1/2-TR |
3615G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 3,500 | 70 | 2.5 | 5.25 | SPRINGFIELD #3-TR & 3-1/2-TR |
REFERENCE | HOUSING SIZE (WIDTH) | TOOL TYPE | DRAWING | Max Speed (rpm)
Rubbing Seals | Max Speed (rpm)
Labyrinth Seals | Male Taper
Gage Dia (in) | Internal Quill Taper Dia (in) | Bearing Size (mm) | Weight (lbs) | Notes |
4001G | 3.0000″ | GRINDING WHEEL | E195330 | 4,400 | 15,000 | 1.001/.999 | 30 | 45 | ||
4002G | 3.5000″ | GRINDING WHEEL | E195370 | 3,700 | 13,000 | 1.001/.999 | 35 | 50 | ||
4003G | 4.0000″ | GRINDING WHEEL | SEE CATALOG | 3,000 | 10,800 | 1.626/1.624 | 45 | 65 | ||
3102A | 4.5000″ | QUILL | U097430 | 10,000 | 1.375 | 50/40 | SPRINGFIELD #2A-TR & 3-TR | |||
3102AY | 4.5000″ | QUILL | E112730 | 18,000 | 1.375 | 50/50 | SPRINGFIELD #2A-TR & 3-TR | |||
3102AY1 | 4.5000″ | QUILL | E126460 | 18,000 | 1 | 50/50 | SPRINGFIELD #2A-TR & 3-TR | |||
4004G | 4.6250″ | GRINDING WHEEL | SEE CATALOG | 2,200 | 8,300 | 2.251/2.249 | 60 | 110 | ||
4005G | 5.5000″ | GRINDING WHEEL | SEE CATALOG | 2,100 | 7,400 | 2.251/2.249 | 65 | 155 | ||
4007G | 6.0000″ | GRINDING WHEEL | SEE CATALOG | 1,900 | 6,800 | 2.626/2.624 | 70 | 210 | ||
4008G | 7.0000″ | GRINDING WHEEL | SEE CATALOG | 1,700 | 6,000 | 3.001/2.999 | 80 | 295 | ||
4009G | 8.0000″ | GRINDING WHEEL | SEE CATALOG | 1,400 | 4,800 | 3.751/3.749 | 100 | 500 | ||
4010G | 9.0000″ | GRINDING WHEEL | SEE CATALOG | 1,200 | 4,500 | 4.501/4.499 | 120 | 745 | ||
4011G | 10.0000″ | GRINDING WHEEL | SEE CATALOG | 1,000 | 3,800 | 5.001/4.999 | 140 | 1025 |
