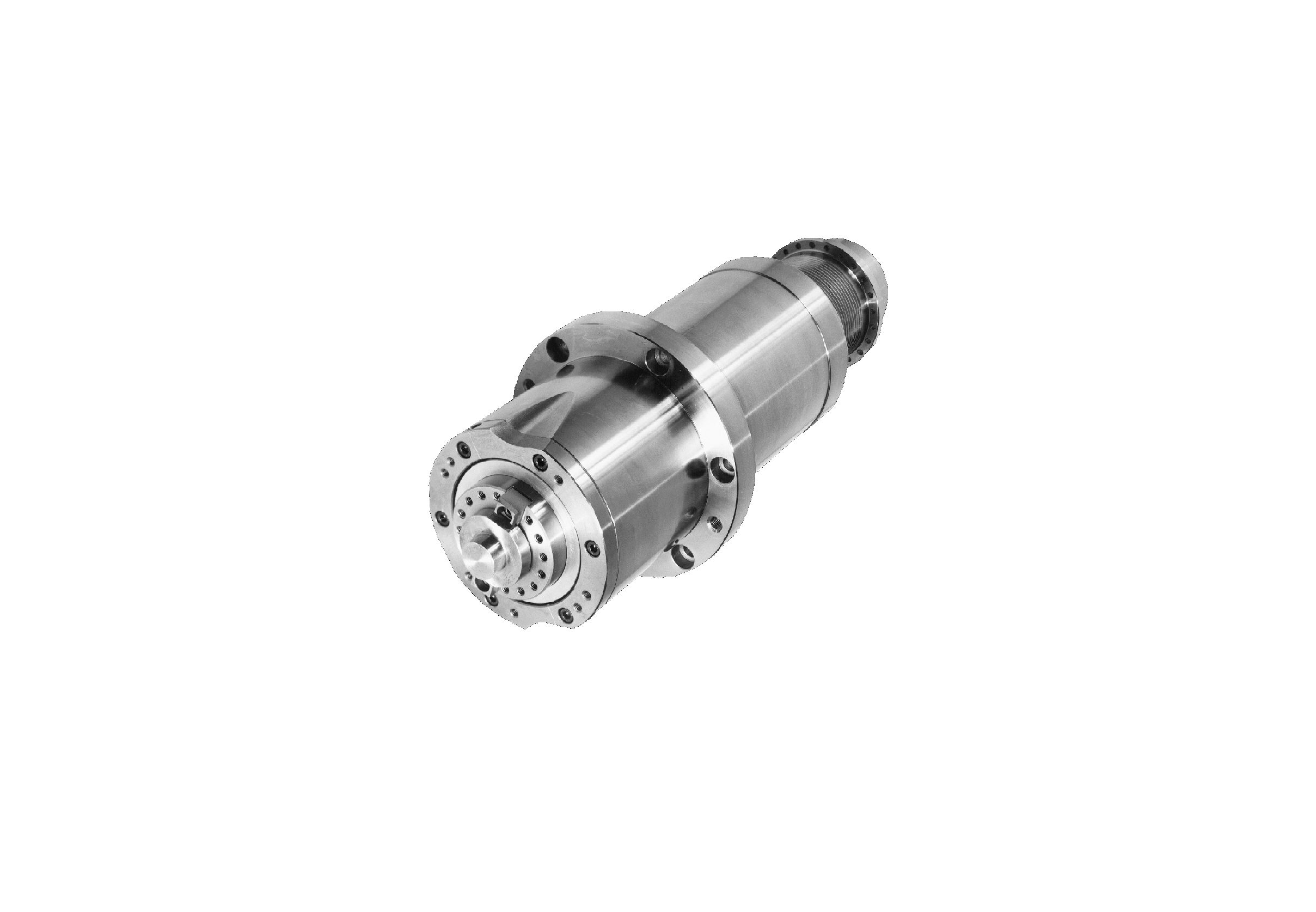

A flanged cartridge spindle features a flange on one end of the cartridge housing. This flange allows the spindle to be bolted directly to the machine tool’s work-head, eliminating the need for a separate adapter plate. These spindles may be ordered without a mechanism and require an external source of power to rotate the spindle shaft and cutting tool.
Flanged cartridge spindles without drives are commonly used in machining operations, such as drilling, milling, and grinding. Be sure to contact your Setco representative for more information on these spindles.
REFERENCE | HOUSING WIDTH | TOOL TYPE | DRAWING | REFERENCE | MAX SPEED (RPM) | BEARING SIZE |
105A730 | 95mm | MILLING TAPER | 105A730 | 105A730 | 20,000 | 45 |
F040-030B | 110mm | STRAIGHT PILOT | E188130 | F040-030B | 19,500 | 40/30 |
F040-030M | 110mm | MILLING TAPER | E188240 | F040-030M | 19,500 | 40/30 |
F040-030G-CW | 110mm | GRINDING-CW | E188340 | F040-030G-CW | 19,500 | 40/30 |
F040-030G-CCW | 110mm | GRINDING-CCW | E190070 | F040-030G-CCW | 19,500 | 40/30 |
125A150 | 110mm | MILLING TAPER | 125A150 | 125A150 | 24,000 | 40 |
F050-040B | 120mm | STRAIGHT PILOT | E188140 | F050-040B | 16,500 | 50/40 |
F050-040M-30 | 120mm | MILLING TAPER-30 | E188250 | F050-040M-30 | 16,500 | 50/40 |
F050-040M-40 | 120mm | MILLING TAPER-40 | E195350 | F050-040M-40 | 16,500 | 50/40 |
F050-040G | 120mm | GRINDING | E188350 | F050-040G | 16,500 | 50/40 |
103A560 | 120mm | MILLING TAPER | 103A560 | 103A560 | 15,000 | 60 |
F060-050B | 135mm | STRAIGHT PILOT | E188150 | F060-050B | 13,500 | 60/50 |
F060-050M | 135mm | MILLING TAPER | E188260 | F060-050M | 13,500 | 60/50 |
F060-050G | 135mm | GRINDING | E188360 | F060-050G | 13,500 | 60/50 |
F070-060B | 150mm | STRAIGHT PILOT | E188170 | F070-060B | 12,000 | 70/60 |
F070-060M | 150mm | MILLING TAPER | E188270 | F070-060M | 12,000 | 70/60 |
F070-060G | 150mm | GRINDING | E188370 | F070-060G | 12,000 | 70/60 |
101AAK0 | 150mm | MILLING TAPER | 101AAK0 | 101AAK0 | 15,000 | 70 |
101AAR0 | 150mm | MILLING HSK | 101AAR0 | 101AAR0 | 15,000 | 70 |
F080-070B | 165mm | STRAIGHT PILOT | E188180 | F080-070B | 10,500 | 80/70 |
F080-070M | 165mm | MILLING TAPER | E188280 | F080-070M | 10,500 | 80/70 |
F080-070G | 165mm | GRINDING | E188380 | F080-070G | 10,500 | 80/70 |
102ADJ0 | 190mm | MILLING TAPER | 102ADJ0 | 102ADJ0 | 10,000 | 90 |
108A540 | 190mm | MILLING TAPER | 108A540 | 108A540 | 8,000 | 100 |
108A650 | 190mm | MILLING HSK | 108A650 | 108A650 | 12,000 | 100 |
F090-080B | 195mm | STRAIGHT PILOT | E188190 | F090-080B | 9,000 | 90/80 |
F090-080M | 195mm | MILLING TAPER | E188290 | F090-080M | 9,000 | 90/80 |
F090-080G | 195mm | GRINDING | E188390 | F090-080G | 9,000 | 90/80 |
F100-085B | 205mm | STRAIGHT PILOT | E188200 | F100-085B | 8,250 | 100/85 |
F100-085M | 205mm | MILLING TAPER | E188300 | F100-085M | 8,250 | 100/85 |
F100-085G | 205mm | GRINDING | E188400 | F100-085G | 8,250 | 100/85 |
F120-100B | 235mm | STRAIGHT PILOT | E188210 | F120-100B | 6,500 | 120/100 |
F120-100M | 235mm | MILLING TAPER | E188310 | F120-100M | 6,500 | 120/100 |
F120-100G | 235mm | GRINDING | E188410 | F120-100G | 6,500 | 120/100 |
F150-120B | 280mm | STRAIGHT PILOT | E188220 | F150-120B | 5,300 | 150/120 |
F150-120M | 280mm | MILLING TAPER | E188320 | F150-120M | 5,300 | 150/120 |
F150-120G | 280mm | GRINDING | E188420 | F150-120G | 5,300 | 150/120 |
F200-150B | 365mm | STRAIGHT PILOT | E188230 | F200-150B | 3,900 | 200/150 |
F200-150M | 365mm | MILLING TAPER | E188330 | F200-150M | 3,900 | 200/150 |
F200-150G | 365mm | GRINDING | E188440 | F200-150G | 3,900 | 200/150 |
