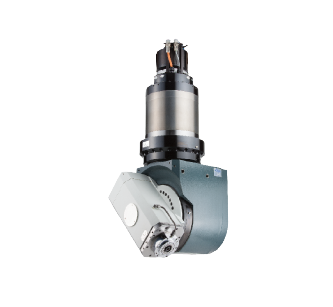

TinyTake19 05 2023 11 37 31 638201074541419882 Removebg Preview E1684510749853

Milling Heads

Rotary – Dual and Single Axis

Setco dual and single axis rotary milling heads are essential tools in machining and milling operations, offering versatility and precision. Single axis rotary milling heads enable rotation around a single axis, typically the vertical axis, allowing for angular adjustments and the creation of complex contours and profiles. They are commonly used in industries such as aerospace and automotive, where intricate part geometries are required.

Dual axis rotary milling heads, on the other hand, provide rotation around both the vertical and horizontal axes, granting even greater flexibility and the ability to perform more complex operations, such as multi-sided machining and drilling at different angles. Both types of milling heads play a vital role in enhancing productivity and achieving high-quality results in modern manufacturing processes. Setco manufactures a wide variety of dual and single axis milling heads to your specifications.

Contact Us

Compare Models

C71 C71

A/B Axis

Bearing Lubrication

  • Grease

CTS

  • Option

L x W x H (mm)

  • N/A

Max. Speed (rpm)

  • 12,000

Spindle Taper

  • KM 63/HSK T63

Weight (kg)

  • N/A

Encoder

  • N/A

External Coolant

  • Standard

Cooling

  • Oil

Power (kW)

  • 11kW S1 Cont. (22kW S3 25%)

Torque

  • 45.7Nm S1 Cont. (110Nm S3 13%)

A Axis

Max. Torque

  • N/A

Braking Torque (Nm)

  • N/A

Swiveling Speed (rpm)

  • N/A

Rotary Angle

  • N/A

Encoder system

  • N/A

Precision of Positioning

  • N/A

B Axis

Max. Torque

  • N/A

Braking Torque (Nm)

  • N/A

Swiveling Speed (rpm)

  • 27

Rotary Angle

  • ±120°

Encoder system

  • N/A

Precision of Positioning

  • 30″

Precision of Repeatability

  • ±6”

C Axis

Max. Torque

  • N/A

Braking Torque (Nm)

  • N/A

Swiveling Speed (rpm)

  • N/A

Rotary Angle

  • N/A

Encoder system

  • N/A

Precision of Positioning

  • N/A

Precision of Repeatability

  • N/A

Download Specs Download Drawing

Compare Models

C66 C66

A/B Axis

Bearing Lubrication

  • Oil-Air

CTS

  • CTS

L x W x H (mm)

  • 500 x 700 x 1500

Max. Speed (rpm)

  • 18,000

Spindle Taper

  • HSK A63

Weight (kg)

  • 1200

Encoder

  • ERM2480-600

External Coolant

  • 4 nozzles standard

Cooling

  • Water with additives

Power (kW)

  • 29.5kW S1 Cont. (37kW S6 40%)

Torque

  • 70.4Nm S1 Cont. (88.3Nm S6 40%)

A Axis

Max. Torque

  • 1,000

Braking Torque (Nm)

  • 1250 (65 bar)

Swiveling Speed (rpm)

  • 6.67

Rotary Angle

  • ±115°

Encoder system

  • Absolute

Precision of Positioning

  • 10″

B Axis

Max. Torque

  • N/A

Braking Torque (Nm)

  • N/A

Swiveling Speed (rpm)

  • N/A

Rotary Angle

  • N/A

Encoder system

  • N/A

Precision of Positioning

  • N/A

Precision of Repeatability

  • N/A

C Axis

Max. Torque

  • 1,000

Braking Torque (Nm)

  • 1250 (65 bar)

Swiveling Speed (rpm)

  • 6.67

Rotary Angle

  • ±220°

Encoder system

  • Absolute

Precision of Positioning

  • 10″

Precision of Repeatability

  • ±3”

Download Specs Download Drawing

Compare Models

C63M01 C63M01

A/B Axis

Bearing Lubrication

  • N/A

CTS

  • Option

L x W x H (mm)

  • 731 x 410 x 574.5

Max. Speed (rpm)

  • 15,000

Spindle Taper

  • #40/HSK A63

Weight (kg)

  • N/A

Encoder

  • Water with additives

External Coolant

  • Standard

Cooling

  • N/A

Power (kW)

  • 18.5kW S1 Cont. (21.5kW S6 60%)

Torque

  • 72.3Nm S1 Cont. (68.1Nm S6 60%)

A Axis

Max. Torque

  • N/A

Braking Torque (Nm)

  • N/A

Swiveling Speed (rpm)

  • N/A

Rotary Angle

  • N/A

Encoder system

  • N/A

Precision of Positioning

  • N/A

B Axis

Max. Torque

  • N/A

Braking Torque (Nm)

  • N/A

Swiveling Speed (rpm)

  • 16.7

Rotary Angle

  • ±110°

Encoder system

  • N/A

Precision of Positioning

  • 20″

Precision of Repeatability

  • ±3”

C Axis

Max. Torque

  • N/A

Braking Torque (Nm)

  • N/A

Swiveling Speed (rpm)

  • N/A

Rotary Angle

  • N/A

Encoder system

  • N/A

Precision of Positioning

  • N/A

Precision of Repeatability

  • N/A

Download Specs Download Drawing

Compare Models

C63C01 C63C01

A/B Axis

Bearing Lubrication

  • Oil-Air

CTS

  • Option

L x W x H (mm)

  • 650 x 400 x 1200

Max. Speed (rpm)

  • 18,000

Spindle Taper

  • HSK A63

Weight (kg)

  • 800

Encoder

  • ERM2480-600

External Coolant

  • 4 nozzles standard

Cooling

  • Water with additives

Power (kW)

  • 29.5kW S1 Cont. (37kW S6 40%)

Torque

  • 70.4Nm S1 Cont. (88.3Nm S6 40%)

A Axis

Max. Torque

  • N/A

Braking Torque (Nm)

  • N/A

Swiveling Speed (rpm)

  • N/A

Rotary Angle

  • N/A

Encoder system

  • N/A

Precision of Positioning

  • N/A

B Axis

Max. Torque

  • 1000

Braking Torque (Nm)

  • 1250 (65 bar)

Swiveling Speed (rpm)

  • 30-40

Rotary Angle

  • ±115°

Encoder system

  • Absolute

Precision of Positioning

  • 10″

Precision of Repeatability

  • ±3”

C Axis

Max. Torque

  • N/A

Braking Torque (Nm)

  • N/A

Swiveling Speed (rpm)

  • N/A

Rotary Angle

  • N/A

Encoder system

  • N/A

Precision of Positioning

  • N/A

Precision of Repeatability

  • N/A

Download Specs Download Drawing

Compare Models

C67 C67

A/B Axis

Bearing Lubrication

  • Oil-Air

CTS

  • Option

L x W x H (mm)

  • 650 x 400 x 1200

Max. Speed (rpm)

  • 18,000

Spindle Taper

  • HSK A63

Weight (kg)

  • 800

Encoder

  • ERM2480-600

External Coolant

  • 4 nozzles standard

Cooling

  • Water with additives

Power (kW)

  • 29.5kW S1 Cont. (37kW S6 40%)

Torque

  • 70.4Nm S1 Cont. (88.3Nm S6 40%)

A Axis

Max. Torque

  • 1,000

Braking Torque (Nm)

  • 1250 (65 bar)

Swiveling Speed (rpm)

  • 30-40

Rotary Angle

  • ±115°

Encoder system

  • Absolute

Precision of Positioning

  • 10″

B Axis

Max. Torque

  • N/A

Braking Torque (Nm)

  • N/A

Swiveling Speed (rpm)

  • N/A

Rotary Angle

  • N/A

Encoder system

  • N/A

Precision of Positioning

  • N/A

Precision of Repeatability

  • N/A

C Axis

Max. Torque

  • 1,000

Braking Torque (Nm)

  • 1250 (65 bar)

Swiveling Speed (rpm)

  • 30-40

Rotary Angle

  • ±115°

Encoder system

  • Absolute

Precision of Positioning

  • 10″

Precision of Repeatability

  • ±3”

Download Specs Download Drawing
