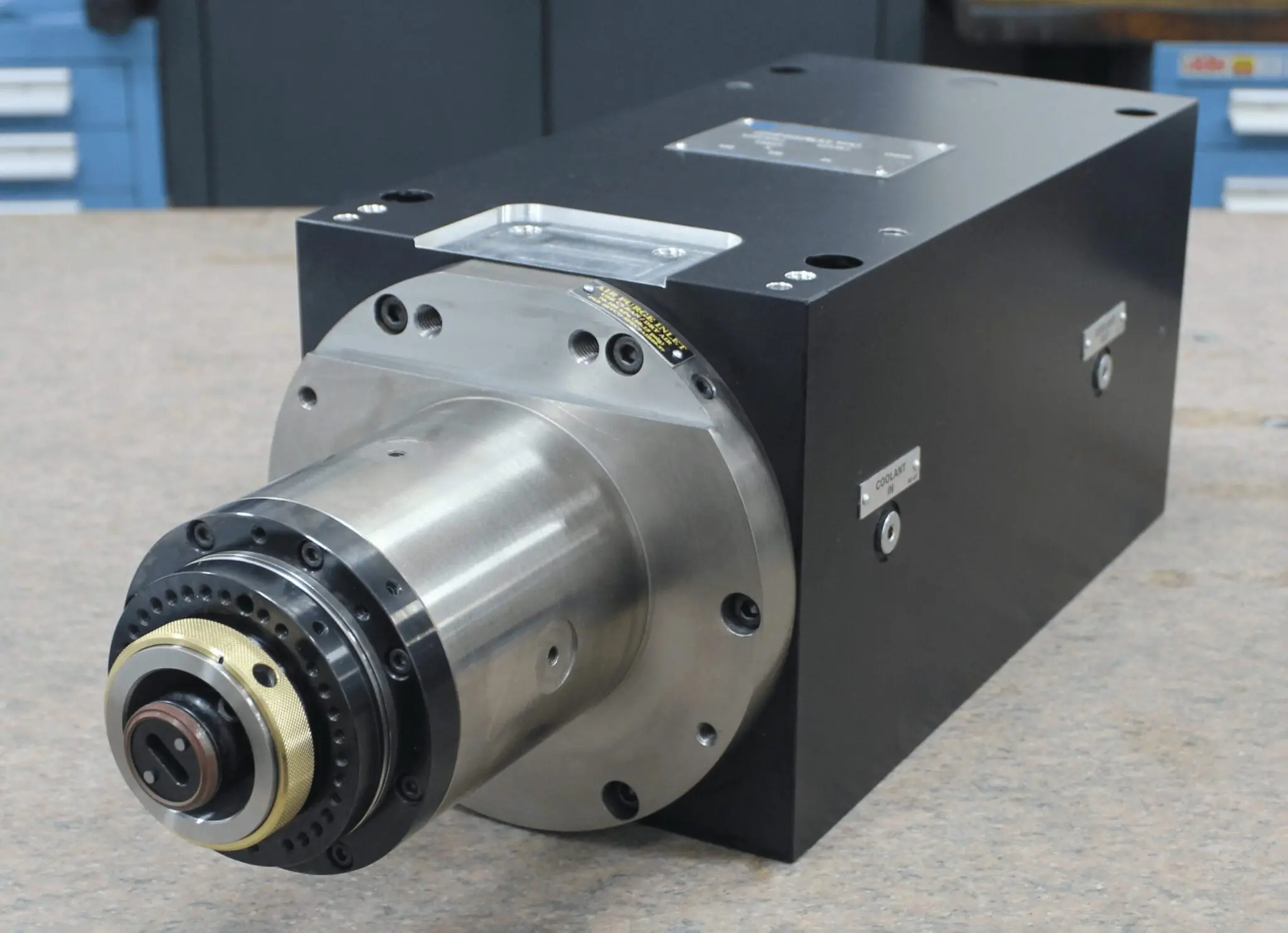

A motorized spindle with a block housing is a type of spindle that has an integrated motor and spindle shaft housed in a block housing. This design provides high torque and speed capabilities, making it ideal for high-performance machining applications. The block housing provides support and stability during machining operations, resulting in improved accuracy and surface finish quality.
Motorized spindles with block housings are commonly used in CNC machining operations, where precision and speed are critical. They offer high rigidity and stiffness, allowing for more efficient and productive machining. Motorized spindles with block housings can be designed for various machining applications, including milling, boring, and grinding.
REFERENCE | HOUSING SIZE (WIDTH) | TOOL TYPE | MOTOR COOLING | POWER @ BASE SPEED | MAX SPEED | TOOLING SIZE | TORQUE | BRG SIZES |
MS05A1#SPINDLE-LC-B | 175mm | STRAIGHT PILOT | LIQUID COOLED | 3.6 kW @ 3,600 RPM | 15,600 RPM | 25 mm | 9.9 Nm | 45mm/25mm |
MS05A1#SPINDLE-LC-M | 175mm | MILLING TAPER | LIQUID COOLED | 3.6 kW @ 3,600 RPM | 15,600 RPM | 30 TAPER | 9.9 Nm | 45mm/25mm |
MS05A1#SPINDLE-LC-H | 175mm | MILLING HSK | LIQUID COOLED | 3.6 kW @ 3,600 RPM | 15,600 RPM | HSK-32C | 9.9 Nm | 45mm/25mm |
MS05A1#SPINDLE-LC-E | 175mm | COLLET | LIQUID COOLED | 3.6 kW @ 3,600 RPM | 15,600 RPM | ER-25 | 9.9 Nm | 45mm/25mm |
MS05A1#SPINDLE-LC-G | 175mm | GRINDING | LIQUID COOLED | 3.6 kW @ 3,600 RPM | 15,600 RPM | 1.000″ GAGE | 9.9 Nm | 45mm/25mm |
MS05A1#SPINDLE-NV-B | 175mm | STRAIGHT PILOT | NON-VENT | .75 kW @ 3,600 RPM | 15,600 RPM | 25 mm | 2.0 Nm | 45mm/25mm |
MS05A1#SPINDLE-NV-M | 175mm | MILLING TAPER | NON-VENT | .75 kW @ 3,600 RPM | 15,600 RPM | 30 TAPER | 2.0 Nm | 45mm/25mm |
MS05A1#SPINDLE-NV-H | 175mm | MILLING HSK | NON-VENT | .75 kW @ 3,600 RPM | 15,600 RPM | HSK-32C | 2.0 Nm | 45mm/25mm |
MS05A1#SPINDLE-NV-E | 175mm | COLLET | NON-VENT | .75 kW @ 3,600 RPM | 15,600 RPM | ER-25 | 2.0 Nm | 45mm/25mm |
MS05A1#SPINDLE-NV-G | 175mm | GRINDING | NON-VENT | .75 kW @ 3,600 RPM | 15,600 RPM | 1.000″ GAGE | 2.0 Nm | 45mm/25mm |
MS06A1#SPINDLE-LC-B | 200mm | STRAIGHT PILOT | LIQUID COOLED | 6.1 kW @ 3,600 RPM | 13,100 RPM | 50 mm | 16.2 Nm | 60mm/35mm |
MS06A1#SPINDLE-LC-M | 200mm | MILLING TAPER | LIQUID COOLED | 6.1 kW @ 3,600 RPM | 13,100 RPM | 40 TAPER | 16.2 Nm | 60mm/35mm |
MS06A1#SPINDLE-LC-H | 200mm | MILLING HSK | LIQUID COOLED | 6.1 kW @ 3,600 RPM | 13,100 RPM | HSK-50C | 16.2 Nm | 60mm/35mm |
MS06A1#SPINDLE-LC-E | 200mm | COLLET | LIQUID COOLED | 6.1 kW @ 3,600 RPM | 13,100 RPM | ER-32 | 16.2 Nm | 60mm/35mm |
MS06A1#SPINDLE-LC-G | 200mm | GRINDING | LIQUID COOLED | 6.1 kW @ 3,600 RPM | 13,100 RPM | 2.250″ GAGE | 16.2 Nm | 60mm/35mm |
MS06A1#SPINDLE-NV-B | 200mm | STRAIGHT PILOT | NON-VENT | 1.1 kW @ 3,600 RPM | 13,100 RPM | 50 mm | 3.0 Nm | 60mm/35mm |
MS06A1#SPINDLE-NV-M | 200mm | MILLING TAPER | NON-VENT | 1.1 kW @ 3,600 RPM | 13,100 RPM | 40 TAPER | 3.0 Nm | 60mm/35mm |
MS06A1#SPINDLE-NV-H | 200mm | MILLING HSK | NON-VENT | 1.1 kW @ 3,600 RPM | 13,100 RPM | HSK-50C | 3.0 Nm | 60mm/35mm |
MS06A1#SPINDLE-NV-E | 200mm | COLLET | NON-VENT | 1.1 kW @ 3,600 RPM | 13,100 RPM | ER-32 | 3.0 Nm | 60mm/35mm |
MS06A1#SPINDLE-NV-G | 200mm | GRINDING | NON-VENT | 1.1 kW @ 3,600 RPM | 13,100 RPM | 2.250″ GAGE | 3.0 Nm | 60mm/35mm |
MS08A1#SPINDLE-LC-B | 250mm | STRAIGHT PILOT | LIQUID COOLED | 9.8 kW @ 3,600 RPM | 11,200 RPM | 50 mm | 25.7 Nm | 70mm/40mm |
MS08A1#SPINDLE-LC-M | 250mm | MILLING TAPER | LIQUID COOLED | 9.8 kW @ 3,600 RPM | 11,200 RPM | 40 TAPER | 25.7 Nm | 70mm/40mm |
MS08A1#SPINDLE-LC-H | 250mm | MILLING HSK | LIQUID COOLED | 9.8 kW @ 3,600 RPM | 11,200 RPM | HSK-63C | 25.7 Nm | 70mm/40mm |
MS08A1#SPINDLE-LC-E | 250mm | COLLET | LIQUID COOLED | 9.8 kW @ 3,600 RPM | 11,200 RPM | ER-40 | 25.7 Nm | 70mm/40mm |
MS08A1#SPINDLE-LC-G | 250mm | GRINDING | LIQUID COOLED | 9.8 kW @ 3,600 RPM | 11,200 RPM | 3.000″ GAGE | 25.7 Nm | 70mm/40mm |
MS08A1#SPINDLE-NV-B | 250mm | STRAIGHT PILOT | NON-VENT | 2.2 kW @ 3,600 RPM | 11,200 RPM | 50 mm | 5.9 Nm | 70mm/40mm |
MS08A1#SPINDLE-NV-M | 250mm | MILLING TAPER | NON-VENT | 2.2 kW @ 3,600 RPM | 11,200 RPM | 40 TAPER | 5.9 Nm | 70mm/40mm |
MS08A1#SPINDLE-NV-H | 250mm | MILLING HSK | NON-VENT | 2.2 kW @ 3,600 RPM | 11,200 RPM | HSK-63C | 5.9 Nm | 70mm/40mm |
MS08A1#SPINDLE-NV-E | 250mm | COLLET | NON-VENT | 2.2 kW @ 3,600 RPM | 11,200 RPM | ER-40 | 5.9 Nm | 70mm/40mm |
MS08A1#SPINDLE-NV-G | 250mm | GRINDING | NON-VENT | 2.2 kW @ 3,600 RPM | 11,200 RPM | 3.000″ GAGE | 5.9 Nm | 70mm/40mm |
251A000 | 262mm | MILL-TURN | LIQUID COOLED | 11 kW @ 2,150 RPM | 12,000 rpm | HSK-T63 | 48.2 Nm | 70mm/60mm |
MS10A1#SPINDLE-LC-B | 300mm | STRAIGHT PILOT | LIQUID COOLED | 25.2 kW @ 3,600 RPM | 10,000 RPM | 50 mm | 66.9 Nm | 80mm/50mm |
MS10A1#SPINDLE-LC-M | 300mm | MILLING TAPER | LIQUID COOLED | 25.2 kW @ 3,600 RPM | 10,000 RPM | 50 TAPER | 66.9 Nm | 80mm/50mm |
MS10A1#SPINDLE-LC-H | 300mm | MILLING HSK | LIQUID COOLED | 25.2 kW @ 3,600 RPM | 10,000 RPM | HSK-63C | 66.9 Nm | 80mm/50mm |
MS10A1#SPINDLE-LC-E | 300mm | COLLET | LIQUID COOLED | 25.2 kW @ 3,600 RPM | 10,000 RPM | ER-40 | 66.9 Nm | 80mm/50mm |
MS10A1#SPINDLE-LC-G | 300mm | GRINDING | LIQUID COOLED | 25.2 kW @ 3,600 RPM | 10,000 RPM | 3.000″ GAGE | 66.9 Nm | 80mm/50mm |
MS10A1#SPINDLE-NV-B | 300mm | STRAIGHT PILOT | NON-VENT | 3.7 kW @ 3,600 RPM | 10,000 RPM | 50 mm | 9.9 Nm | 80mm/50mm |
MS10A1#SPINDLE-NV-M | 300mm | MILLING TAPER | NON-VENT | 3.7 kW @ 3,600 RPM | 10,000 RPM | 50 TAPER | 9.9 Nm | 80mm/50mm |
MS10A1#SPINDLE-NV-H | 300mm | MILLING HSK | NON-VENT | 3.7 kW @ 3,600 RPM | 10,000 RPM | HSK-63C | 9.9 Nm | 80mm/50mm |
MS10A1#SPINDLE-NV-E | 300mm | COLLET | NON-VENT | 3.7 kW @ 3,600 RPM | 10,000 RPM | ER-40 | 9.9 Nm | 80mm/50mm |
MS10A1#SPINDLE-NV-G | 300mm | GRINDING | NON-VENT | 3.7 kW @ 3,600 RPM | 10,000 RPM | 3.000″ GAGE | 9.9 Nm | 80mm/50mm |
276A000 | 340mm | MILL-TURN | LIQUID COOLED | 28 kW @ 1,460 RPM | 12,000 RPM | HSK-T100 | 182.9 Nm | 100mm/80mm |
MS12A1#SPINDLE-LC-B | 350mm | STRAIGHT PILOT | LIQUID COOLED | 42.0 kW @ 3,600 RPM | 8,800 RPM | 50 mm | 110.8 Nm | 90mm/55mm |
MS12A1#SPINDLE-LC-M | 350mm | MILLING TAPER | LIQUID COOLED | 42.0 kW @ 3,600 RPM | 8,800 RPM | 50 TAPER | 110.8 Nm | 90mm/55mm |
MS12A1#SPINDLE-LC-H | 350mm | MILLING HSK | LIQUID COOLED | 42.0 kW @ 3,600 RPM | 8,800 RPM | HSK-80C | 110.8 Nm | 90mm/55mm |
MS12A1#SPINDLE-LC-E | 350mm | COLLET | LIQUID COOLED | 42.0 kW @ 3,600 RPM | 8,800 RPM | ER-50 | 110.8 Nm | 90mm/55mm |
MS12A1#SPINDLE-LC-G | 350mm | GRINDING | LIQUID COOLED | 42.0 kW @ 3,600 RPM | 8,800 RPM | 3.000″ GAGE | 110.8 Nm | 90mm/55mm |
MS12A1#SPINDLE-NV-B | 350mm | STRAIGHT PILOT | NON-VENT | 11.2 kW @ 3,600 RPM | 8,800 RPM | 50 mm | 29.7 Nm | 90mm/55mm |
MS12A1#SPINDLE-NV-M | 350mm | MILLING TAPER | NON-VENT | 11.2 kW @ 3,600 RPM | 8,800 RPM | 50 TAPER | 29.7 Nm | 90mm/55mm |
MS12A1#SPINDLE-NV-H | 350mm | MILLING HSK | NON-VENT | 11.2 kW @ 3,600 RPM | 8,800 RPM | HSK-80C | 29.7 Nm | 90mm/55mm |
MS12A1#SPINDLE-NV-E | 350mm | COLLET | NON-VENT | 11.2 kW @ 3,600 RPM | 8,800 RPM | ER-50 | 29.7 Nm | 90mm/55mm |
MS12A1#SPINDLE-NV-G | 350mm | GRINDING | NON-VENT | 11.2 kW @ 3,600 RPM | 8,800 RPM | 3.000″ GAGE | 29.7 Nm | 90mm/55mm |
