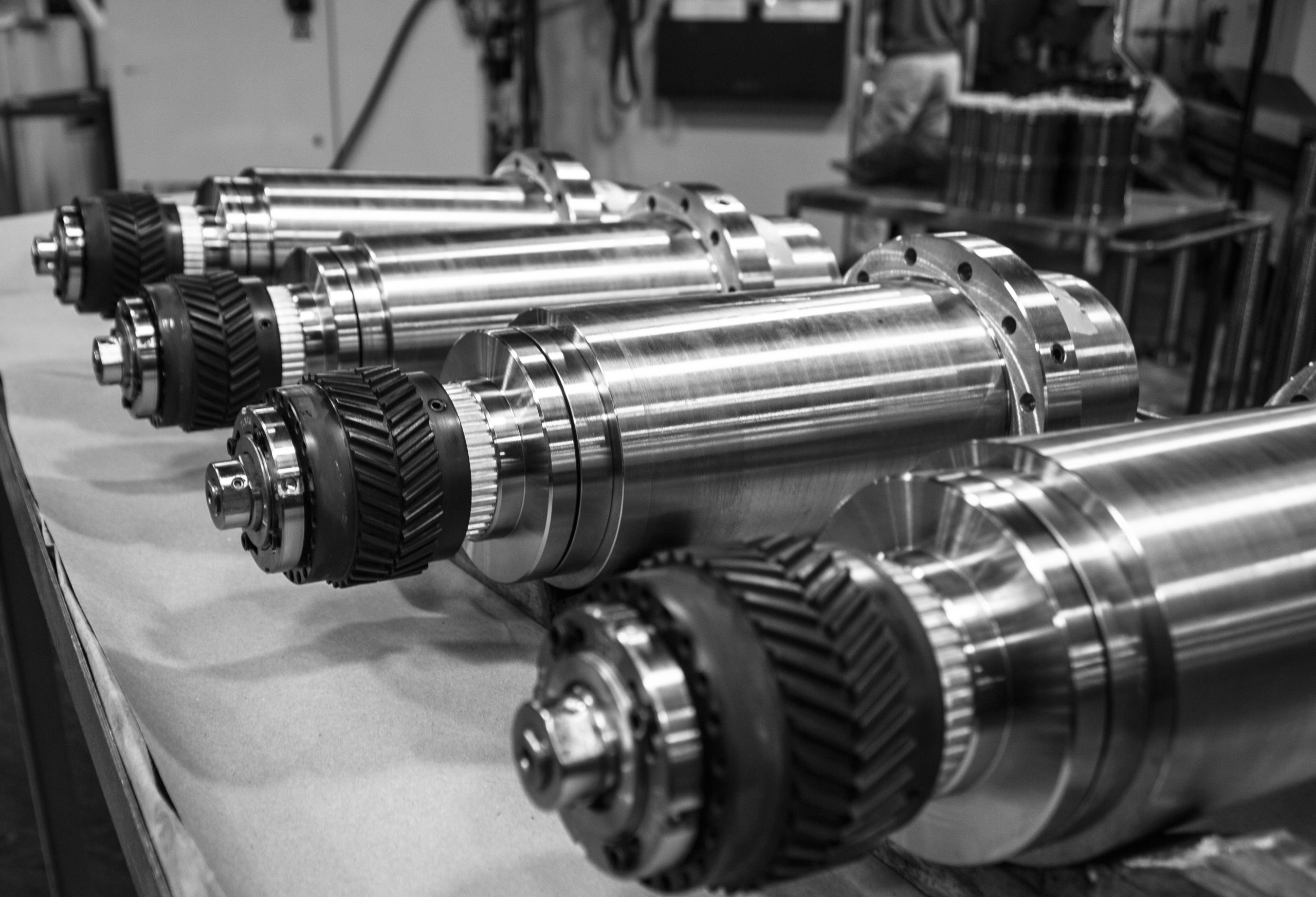

Spindles – Belt Drive – Flanged Cartridge

Belt-driven spindles with flanged cartridges are commonly used in CNC machining operations, where precision and speed are critical. They offer high torque and can achieve high speeds with relatively low noise levels. The flanged cartridge design provides increased rigidity and stability, resulting in improved accuracy and surface finish quality.

Belt-driven spindles with flanged cartridges are also relatively easy to maintain and repair. Proper selection and maintenance of a belt-driven spindle with a flanged cartridge can help ensure optimal performance and longer spindle life.

REFERENCE
HOUSING WIDTH
TOOL TYPE
DRAWING
BEARING SIZE
TOOL TYPE
MAX SPEED (RPM)
TYPE
505A050
120mm
MILLING TAPER
505A050
60mm
BT40
12,000
505A050
551A100
120mm
MILLING TAPER
551A_10K_STD_SERIES
60mm
BT40
10,000
551A100
551A120
120mm
MILLING TAPER
551A_10K_STD_SERIES
60mm
CAT40
10,000
551A120
551A140
120mm
MILLING TAPER
551A_10K_STD_SERIES
60mm
DIN40
10,000
551A140
551A160
120mm
MILLING TAPER
551A_10K_STD_SERIES
60mm
MAZAK BT40
10,000
551A160
538A070
150mm
MILLING TAPER
538A070
70mm
BT40
8,000
538A070
315A000
170mm
TURNING
315A000
80mm
A2-5
6,000
315A000
536A020
190mm
MILLING TAPER
536A020
100mm
BT50
6,000
536A020
317A000
200mm
TURNING
317A000
100mm
A2-6
4,000
317A000
318A000
260mm
TURNING
318A000
130mm
A2-8
3,500
318A000
337A000
270mm
TURNING
337A000
130mm
A2-8
3,000
337A000
330A000
286mm
TURNING
330A000
160mm
A2-11
2,800
330A000
331A000
400mm
TURNING
331A001
240mm
A2-15
1,600
331A000
341A021
TURNING
341A021
200mm
A2-15
1,500
341A021
