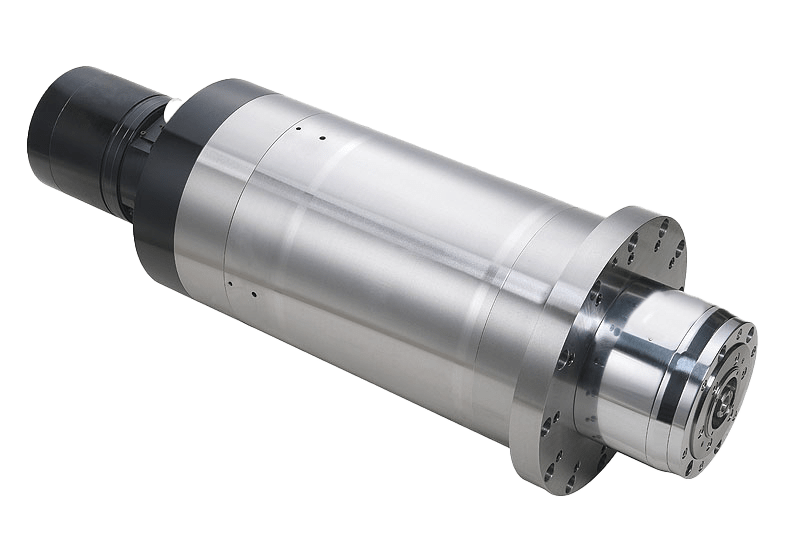

A motorized CNC machine tool spindle with a flanged cartridge features an integrated motor and spindle shaft. The flanged cartridge design allows for easy installation and removal of the spindle assembly from the machine tool.
Motorized CNC spindles with flanged cartridges are commonly used in high-performance machining applications that require precise control of speed, torque, and acceleration. They offer high rigidity and stiffness, allowing for more efficient and productive machining.
REFERENCE | HOUSING SIZE (WIDTH) | TOOL TYPE | DRAWING | MOTOR COOLING | MAX MOTOR POWER | MAX SPEED | TOOLING SIZE | TORQUE | BRG SIZES | NOTES |
MD045-F-120-M | 120mm | MILLING HSK | 231A460 | LIQUID COOLED | 7.5 kW @ 12,000 RPM | 30,000 RPM | HSK-40A | 6.0 Nm | 45mm/35mm | FANUC MOTOR, AIRSHIELD |
MD045-F-120-M | 120mm | MILLING TAPER | 231A081 | LIQUID COOLED | 7.5 kW @ 12,000 RPM | 24,000 RPM | BBT-30 | 6.0 Nm | 45mm/35mm | |
MD070-F-170-M | 170mm | MILLING HSK | M-10242 | LIQUID COOLED | 30 kW @ 9,490 RPM | 25,000 RPM | HSK-63E | 30.2 Nm | 70mm/50mm | |
MD100-F-190-M | 190mm | MILLING HSK | 245A040 | LIQUID COOLED | 55 kW @ 4,300 rpm | 12,000 RPM | HSK-100A | 122 Nm | 100mm/70mm | |
MD100-F-202-M | 202mm | MILLING HSK | M-13040 | LIQUID COOLED | 40 kW @ 3,200 RPM | 11,000 RPM | HSK-100A | 119 Nm | 100mm/70mm | |
MD070-F-210-M | 210mm | MILLING HSK | 222A490 | LIQUID COOLED | 25 kW @ 2,870 RPM | 24,000 RPM | HSK-63A | 83.2 Nm | 70mm/60mm | |
MD070-F-210-M | 210mm | MILLING TAPER | 222A860 | LIQUID COOLED | 25 kW @ 2,870 RPM | 15,000 RPM | BT-40 | 83.2 Nm | 70mm/60mm | |
MD080-F-211-T | 211mm | TURNING | 310A000 | LIQUID COOLED | 5.5 kW @ 1,500 RPM | 6,000 RPM | A2-5 | 35.0 Nm | 80mm | |
MD090-F-220-G | 220mm | GRINDING | 605A000 | LIQUID COOLED | 17.0 kW @ 2,880 RPM | 6,000 RPM | Male taper (6°) | 56.4 Nm | 90 | Arranged for internal balancer |
MD070-F-220-M | 220mm | MILLING HSK | 253A012 | LIQUID COOLED | 29 kW @ 3,500 RPM | 14,000 RPM | HSK-63A | 78.9 Nm | 70mm/60mm | AIRSHIELD |
MD070-F-230-MT | 230mm | MILL-TURN | 256A000 | LIQUID COOLED | 11 kW @ 2,100 RPM | 20,000 RPM | HSK-T63 | 48.2 Nm | 70mm | |
MD070-F-231-M | 231mm | MILLING HSK | 2B7A010 | LIQUID COOLED | 11 kW @ 1,650 RPM
18.5 kW @ 9,000 RPM | 20,000 RPM | HSK-63A | 63.7 Nm
19.6 Nm | 70mm/60mm | 2-SPEED FANUC MOTOR,SHORT LENGTH, AIRSHIELD |
MD090-F-276-T | 276mm | TURNING | 308A040 | LIQUID COOLED | 9.5 kW @ 760 RPM | 2,600 RPM | A2-5 | 119.4 Nm | 90mm | |
MD100-F-290-M | 290mm | MILLING HSK | 206A860 | LIQUID COOLED | 15 kW @ 600 RPM
25 kW @ 2,500 RPM | 12,000 RPM | HSK-100A | 238.7 Nm
95.5 Nm | 100mm/70mm | 2-SPEED FANUC MOTOR |
MD100-F-310-M | 310mm | MILLING TAPER | 206A280 | LIQUID COOLED | 25 kW @ 800 RPM | 10,000 RPM | BT-50 | 298.4 Nm | 100mm/70mm | |
MD100-F-320-MT | 320mm | MILL-TURN | 236A001 | LIQUID COOLED | 28.1 kW @ 2,100 RPM | 8,000 RPM | HSK-T100 | 127.8 Nm | 100mm/70mm | |
MD120-F-345-T | 345mm | TURNING | 307A070 | LIQUID COOLED | 15 kW @ 380 RPM | 5,000 RPM | A2-5 | 376.9 Nm | 120mm | |
MD130-F-365-T | 365mm | TURNING | 309A010 | LIQUID COOLED | 15 kW @ 360 RPM | 3,500 RPM | A2-8 | 397.9 Nm | 130mm |
