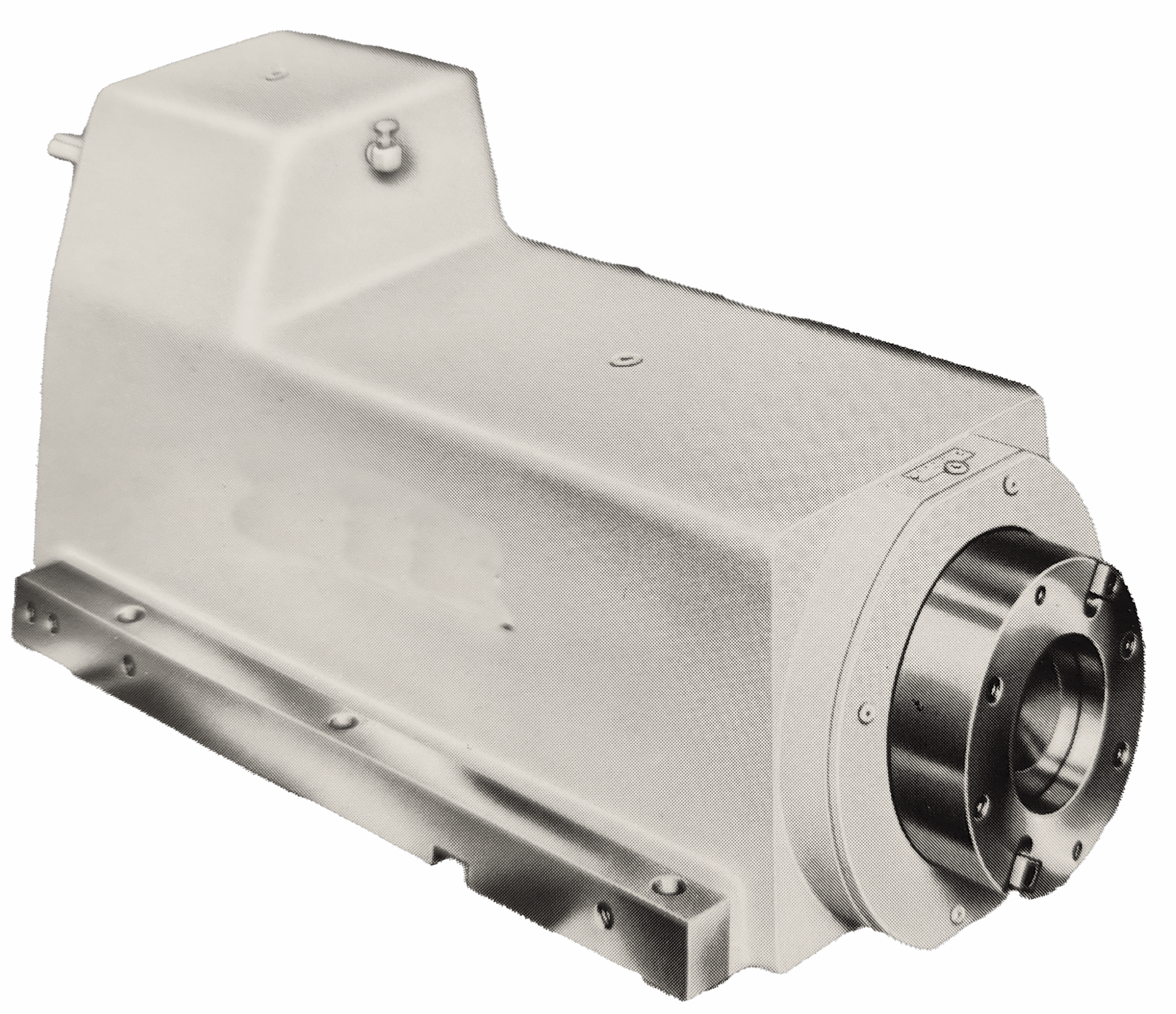

A parallel gear spindle with a foot mount application is a type of spindle that features parallel gears to transmit power from the motor to the spindle shaft and is designed to be mounted on the base of a machine tool. The foot mount application allows for easy installation and removal of the spindle assembly from the machine tool.
REFERENCE | HOUSING SIZE (WIDTH) | Housing Height (in) | Centerline Height (in) | BEARING SIZE | Max Speed (rpm) | Gear Ratio | Max Torque Rating (in*lbs) | Max Torque (Hp/Rev) | Weight (lbs) |
4208PG | 12.50″ | 13.5 | 6.001/5.999 | 90 | 1200 | 3:01 | 2600 | 0.04 | 550 |
4210PG | 13.50″ | 13.5 | 6.001/5.999 | 110 | 1200 | 3:01 | 4250 | 0.067 | 800 |
4212PG | 16.00″ | 17 | 6.001/5.999 | 130 | 800 | 3:01 | 7950 | 0.125 | 900 |
4214PG | 17.00″ | 20 | 8.001/7.999 | 152 | 800 | 3:01 | 15900 | 0.25 | 1400 |
4218PG | 22.00″ | 22 | 10.001/9.999 | 286 | 500 | 3:01 | 44500 | 0.714 | 2400 |
