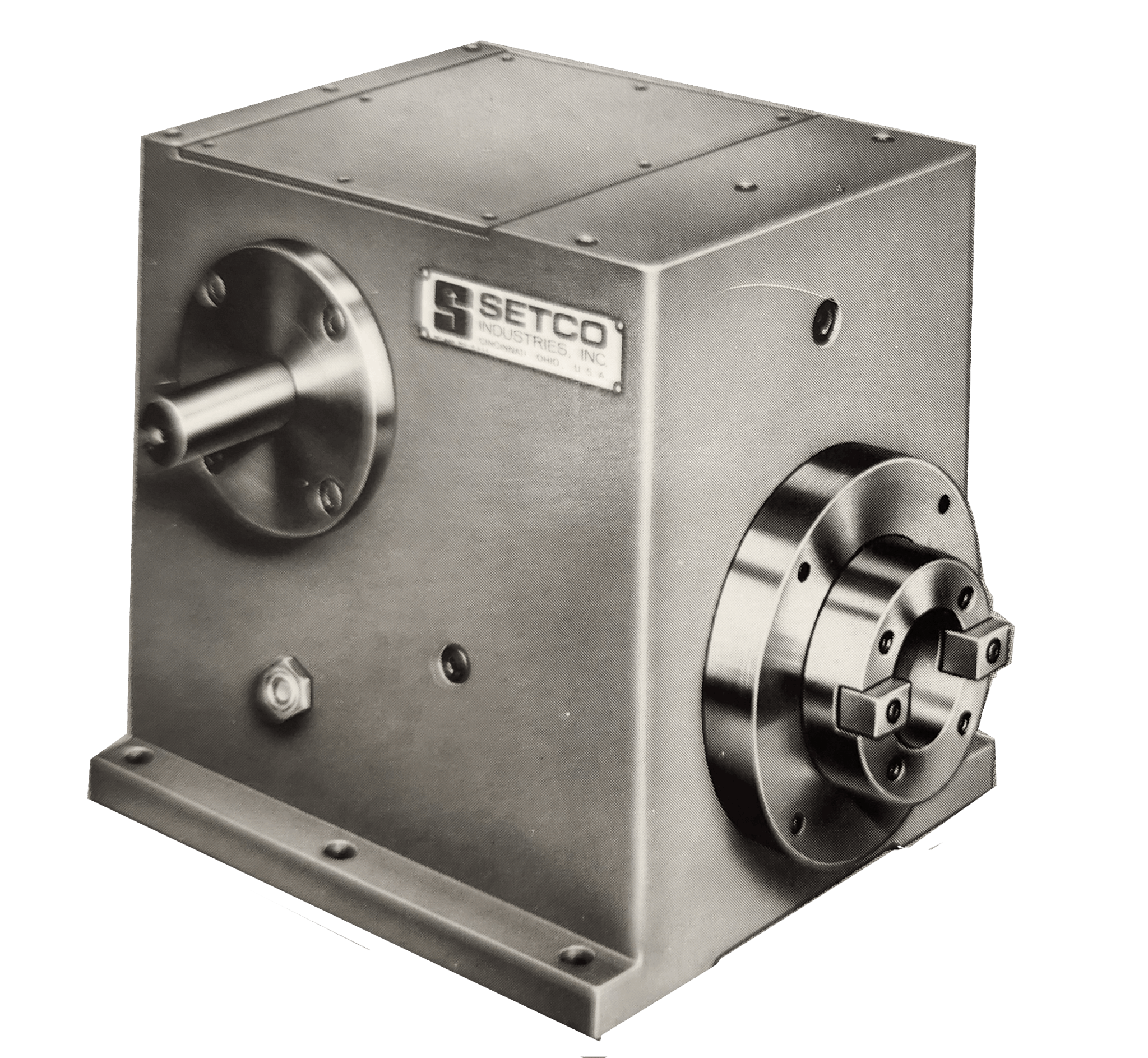

A worm gear spindle with a foot mount application is a type of spindle that uses a worm gear to transmit power from the motor to the spindle shaft and is designed to be mounted on the base of a machine tool. The foot mount application allows for easy installation and removal of the spindle assembly from the machine tool.
The worm gear provides high torque multiplication, making it ideal for machine tools that require high cutting force at low speeds, such as threading and hobbing machines. Proper selection and maintenance of a worm gear spindle with a foot mount application can help ensure optimal performance and longer spindle life, reducing downtime and maintenance costs.
Reference | HOUSING SIZE (WIDTH) | Housing Height (in) | Centerline Height (in) | Drawing | BEARING SIZE | TOOL SIZE | Input Speed (rpm) | Output Speed (rpm) | Gear Ratio | Input Power Rating (Hp) | Output Power Rating (Hp) | Weight (lbs) |
RM2-5 | 9.00″ | 10.25 | 4.001/3.999 | E065740 | 51 | #40 | 100 | 20 | 5 | 1.31 | 1.14 | 200 |
RM2-5 | 9.00″ | 10.25 | 4.001/3.999 | E065740 | 51 | #40 | 200 | 40 | 5 | 2.51 | 1.78 | 200 |
RM2-5 | 9.00″ | 10.25 | 4.001/3.999 | E065740 | 51 | #40 | 300 | 60 | 5 | 3.6 | 3.2 | 200 |
RM2-5 | 9.00″ | 10.25 | 4.001/3.999 | E065740 | 51 | #40 | 580 | 116 | 5 | 6.04 | 5.38 | 200 |
RM2-5 | 9.00″ | 10.25 | 4.001/3.999 | E065740 | 51 | #40 | 720 | 144 | 5 | 6.97 | 6.2 | 200 |
RM2-5 | 9.00″ | 10.25 | 4.001/3.999 | E065740 | 51 | #40 | 870 | 174 | 5 | 7.87 | 7.08 | 200 |
RM2-5 | 9.00″ | 10.25 | 4.001/3.999 | E065740 | 51 | #40 | 1150 | 230 | 5 | 9.02 | 8.12 | 200 |
RM2-5 | 9.00″ | 10.25 | 4.001/3.999 | E065740 | 51 | #40 | 1750 | 350 | 5 | 11.3 | 10.17 | 200 |
RM2-5 | 9.00″ | 10.25 | 4.001/3.999 | E065740 | 51 | #40 | 2400 | 480 | 5 | 13 | 11.7 | 200 |
RM5-5 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 100 | 20 | 5 | 3.62 | 3.22 | 385 |
RM5-5 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 200 | 40 | 5 | 6.82 | 6.14 | 385 |
RM5-5 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 300 | 60 | 5 | 9.3 | 8.46 | 385 |
RM5-5 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 580 | 116 | 5 | 14.85 | 13.51 | 385 |
RM5-5 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 720 | 144 | 5 | 16.75 | 15.24 | 385 |
RM5-5 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 870 | 174 | 5 | 18.5 | 17.02 | 385 |
RM5-5 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 1150 | 230 | 5 | 21.8 | 20.05 | 385 |
RM5-5 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 1750 | 350 | 5 | 26.65 | 24.52 | 385 |
RM5-5 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 2400 | 480 | 5 | 29.7 | 27.32 | 385 |
RM5-10 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 100 | 10 | 10 | 2.32 | 1.93 | 385 |
RM5-10 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 200 | 20 | 10 | 4.27 | 3.63 | 385 |
RM5-10 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 300 | 30 | 10 | 6.02 | 5.17 | 385 |
RM5-10 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 580 | 58 | 10 | 9.95 | 8.66 | 385 |
RM5-10 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 720 | 72 | 10 | 11.38 | 10.13 | 385 |
RM5-10 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 870 | 87 | 10 | 12.65 | 11.25 | 385 |
RM5-10 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 1150 | 115 | 10 | 14.85 | 13.36 | 385 |
RM5-10 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 1750 | 175 | 10 | 18.4 | 16.56 | 385 |
RM5-10 | 12.00″ | 13 | 4.876/4.874 | E119620 | 97 | #50 | 2400 | 240 | 10 | 21.1 | 19 | 385 |
4213WG | 15.00″ | 17 | 7.001/6.999 | SEE CATALOG | 140 | 4.0000″ | 500 | 100 | 5 | 25.5 | 23.2 | 1400 |
4213WG | 15.00″ | 17 | 7.001/6.999 | SEE CATALOG | 140 | 4.0000″ | 1000 | 200 | 5 | 37.6 | 34.6 | 1400 |
4213WG | 15.00″ | 17 | 7.001/6.999 | SEE CATALOG | 140 | 4.0000″ | 1500 | 300 | 5 | 45.6 | 41.9 | 1400 |
4213WG | 15.00″ | 17 | 7.001/6.999 | SEE CATALOG | 140 | 4.0000″ | 3000 | 600 | 5 | 59.2 | 54.4 | 1400 |
4213WG | 15.00″ | 17 | 7.001/6.999 | SEE CATALOG | 140 | 4.0000″ | 1000 | 100 | 10 | 25.1 | 22.6 | 1400 |
4213WG | 15.00″ | 17 | 7.001/6.999 | SEE CATALOG | 140 | 4.0000″ | 2000 | 200 | 10 | 34.8 | 31.3 | 1400 |
4213WG | 15.00″ | 17 | 7.001/6.999 | SEE CATALOG | 140 | 4.0000″ | 3000 | 300 | 10 | 40.2 | 36.2 | 1400 |
RM10-5 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 100 | 20 | 5 | 7.15 | 6.36 | 550 |
RM10-5 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 200 | 40 | 5 | 13.26 | 11.92 | 550 |
RM10-5 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 300 | 60 | 5 | 18.4 | 16.74 | 550 |
RM10-5 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 580 | 116 | 5 | 28.3 | 25.75 | 550 |
RM10-5 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 720 | 144 | 5 | 31.65 | 28.8 | 550 |
RM10-5 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 870 | 174 | 5 | 35.15 | 32.34 | 550 |
RM10-5 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 1150 | 230 | 5 | 40.5 | 37.26 | 550 |
RM10-5 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 1750 | 350 | 5 | 49.2 | 46.25 | 550 |
RM10-5 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 2400 | 480 | 5 | 54.4 | 50.05 | 550 |
RM10-10 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 100 | 10 | 10 | 4.63 | 3.84 | 550 |
RM10-10 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 200 | 20 | 10 | 8.47 | 7.2 | 550 |
RM10-10 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 300 | 30 | 10 | 11.87 | 10.21 | 550 |
RM10-10 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 580 | 58 | 10 | 18.82 | 16.37 | 550 |
RM10-10 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 720 | 72 | 10 | 21.13 | 18.81 | 550 |
RM10-10 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 870 | 87 | 10 | 23.4 | 20.83 | 550 |
RM10-10 | 15.00″ | 15.5 | 5.876/5.874 | E119690 | 108 | #50 | 1150 | 115 | 10 |
